Flexible sample access
Standard tray accommodates 120 × 5 mL sample tubes; a 172 × 2 mL septum-vial variant is described in the datasheet.
RADIUS LABS · AUTOSAMPLER SOLUTIONS
Put every samplewithin reach.
Random access autosamplers for OEM and end-user applications, designed for dependable liquid sample delivery.

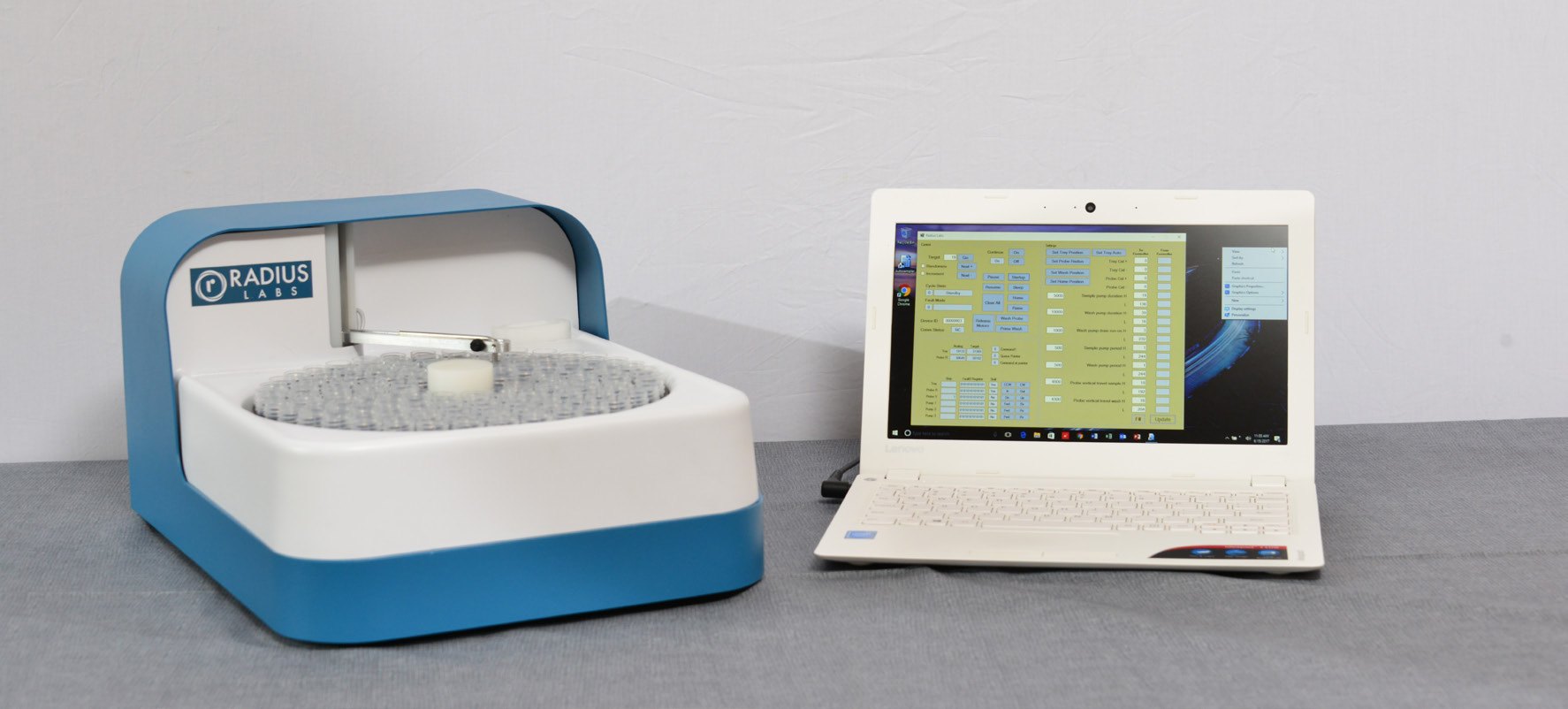

1120 Random Access Sampler120 positions for 5 mL tubes7 in. low-profile height
THE 1120 RANDOM ACCESS SAMPLER
A direct route to the sample you need.
The carousel tray lets the probe reach programmed sample positions without advancing through every cup in sequence. Its compact footprint suits instruments and fluidic processing systems where access and integration matter.
Ask about configuration ↗Integrated fluidics

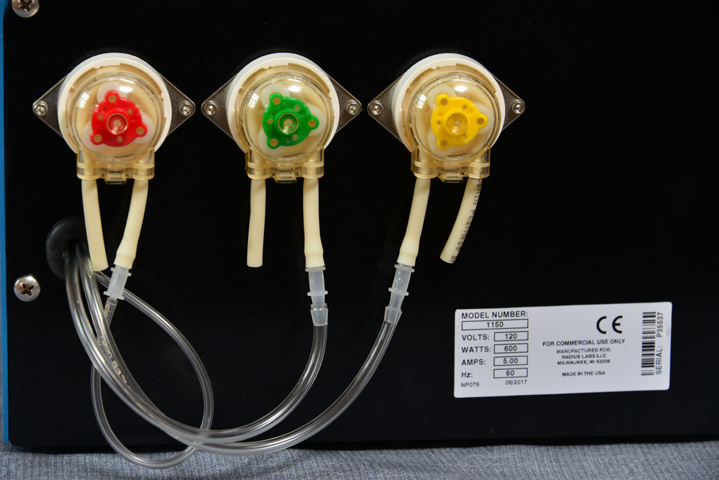

Three integral, color-coded pumps support two wash paths and sample aspiration.
Built for integration
USB connection, internal tubing management and an optional shelf or pull-out drawer support system design.
Application support
Radius Labs can help develop and test methods around your sample type and instrument interface.
INSIDE THE SAMPLER
Sample access and wash control in one compact unit.
Software can direct the probe to a chosen position on the carousel, making it practical to revisit a calibration standard, spike or QC sample during a tray sequence. Stepper motors control the probe’s vertical movement, arc and tray rotation.
The wash bath uses separate pumps for wash in and wash out. An optional sampling pump handles aspiration. Internal drives and tubing management keep the fluidics within the instrument’s footprint.
Get the full data sheet (PDF) ↗CONFIGURE THE WORKFLOW
Options for your instrument and sample.
The original data sheet describes standard open-tube trays, septum-sealed vial trays, OEM versions and end-user systems. Radius Labs can discuss the configuration that fits your method.
120-position tray
The standard 1120 tray holds 120 disposable 5 mL sample tubes. The probe can go directly to a programmed position rather than advancing sequentially.
172-position option
The 1172 configuration described in the sheet uses 172 2 mL septum-seal vials and a high-torque vertical probe drive for septum access.
OEM and end-user
Discuss customized trays, private labeling, custom chassis color, a software driver, and an optional pull-out shelf for modules above the sampler.
Software driver: The data sheet describes settings for sample cup and wash-bath depths, aspiration timing, wash fluid movement, and interfacing tests.
AT A GLANCE
Designed to fit the workflow.
- Dimensions
- 7 × 10 × 15 in. (H × W × D)
- Weight
- 5 lb
- Power
- 100–230 VAC external supply
- Interface
- USB
ORIGINAL PRODUCT SHEET
See the full sampler details.
Download Radius Labs’ two-page Random Access Sampler data sheet for specifications, configurations, ordering details and options. It is dated 2017; confirm current availability and specifications with Radius Labs.
LET'S TALK SAMPLES
Tell us what your method needs.
Open cups or sealed vials, OEM integration or an end-user system: start with your sample and instrument requirements.
